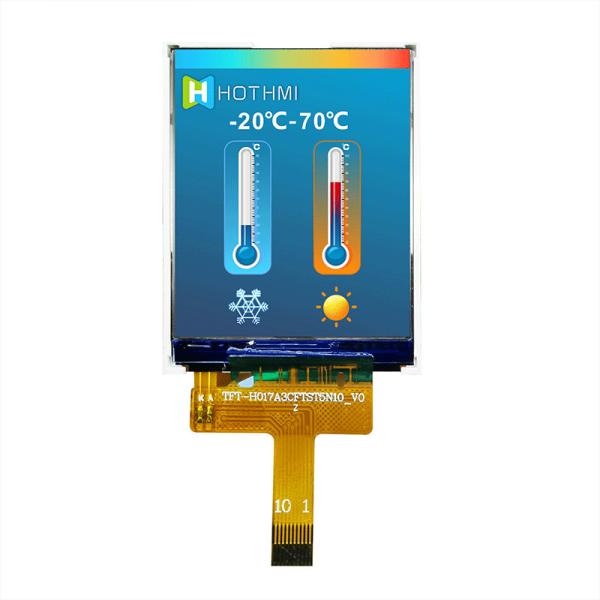

1.77 Inch Sunlight Readable Resistive TFT Display 128x160 Tft Color Monitor

Name: 177 Inch Sunlight Readable Resistive TFT Display 128x160 Tft Color Monitor
Brand: HOTHMI
Price: 1 USD

Quality 1.77 Inch Sunlight Readable Resistive TFT Display 128x160 Tft Color Monitor for sale

Brand Name : HOTHMI

Model Number : TFT-H017A3CFTST5N10

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Display Size : 1.77 inch

Dimensions (mm) : 34.0x43.7x2.3

Effective size (mm) : 28.032x35.040

Product Application : Outdoor Equipment/Handheld Equipment

Viewing Angle : 12H

Driver chip model : ST7735S

Contact Now

1.77 Inch Sunlight Readable Resistive TFT Display/128x160 Pixels/TFT-H017A3CFTST5N10

DESCRIPTION

Product Type - TFT
Display Content - 128x160
Sight window - 1.77 inch
Backlight type or brightness - 850cd/m2
Connection method PIN number - FPC-10PIN
Interface - SPI
Working temperature - (-20~70℃)
Supply Voltage - 2.8v

General Feature:

Item	Standard Value	Unit
Display Size	1.77 inch	--
Number of Pixels	128(H)x3(RGB)x160(V)	--
Active Area	28.032(H)x35.040(V)	mm
Outline Dimension	34.00(H) ×43.70(V)× 2.30(D)	mm
Viewing Direction	12 O'clock	-
Interface	SPI 3/4L	-
Driver IC	ST7735S	-
Driver Condition	VCI=2.8V	V
Backlight	White LED	-
Touch Panel	No Touch Panel	-
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃

Pin Description

Pin NO.	Symbol	Description
1	LED_A	LED Anode
2	VCI	Analog Power(2.65 ~ 3.3 V)
3	CS	Chip select input pin (“Low” enable).
4	RESX	Reset Pin
5	SCK	Serial interface clock.
6	SDA	SPI interface input pin.
7	D/CX	- Display data/command selection pin. -Fix to GND level when not in use.
8	SPI4W	- SPI4W=’0’, 3-line SPI Enable. - SPI4W=’1’, 4-line SPI Enable.
9	LED_K	LED Cathode
10	GND	Ground

1.77 Inch Sunlight Readable Resistive TFT Display 128x160 Tft Color Monitor

TFT-H017A3CFTST5N10.pdf
