3.5 inch 320x320 TFT LCD Module Practical Vertical Pcap Monitor

Name: 35 inch 320x320 TFT LCD Module Practical Vertical Pcap Monitor
Brand: HOTHMI
Price: 1 USD

Quality 3.5 inch 320x320 TFT LCD Module Practical Vertical Pcap Monitor for sale

Brand Name : HOTHMI

Model Number : TFT-H035A3HVIST4C50

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : TFT Vertical Screen

Display Content : 320x480

Display Size : 3.5"

Effective size mm : 48.96x73.44

Perspective : Full Perspective

Backlight type or brightness : 450cd/m2

Contact Now

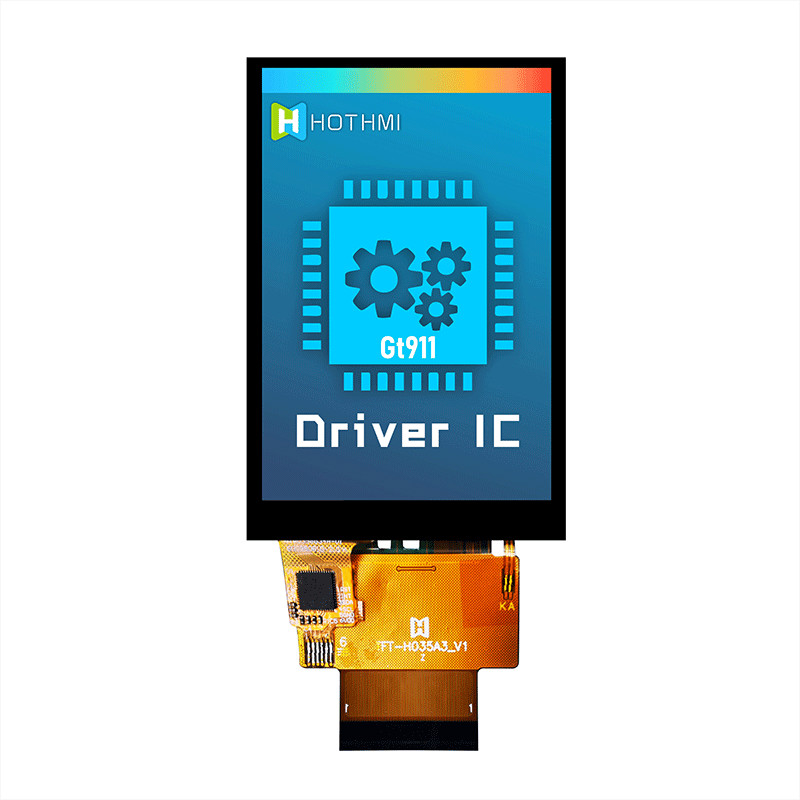

3.5" TFT Touch Screen/3.5" TFT LCD Screen/320x320 Pixels/TFT-H035A3HVIST4C50

Product parameters

Dimensions (mm) - 54.76x83.58x2.5
Viewport Window Size - 3.5"
Product Application - Industrial Instrumentation
Connection method PIN number - FPC-50PIN
Interface - MCU/SPI/RGB/MIPI
Working temperature - (-20~70℃)
Supply Voltage - 3.3v
Driver chip model - ST7796S

General Feature:

Item	Standard Value	Unit
Display Size	3.5”	-
Number of Pixels	320(H)x3(RGB)*480(V)	-
Active Area	48.96(H) * 73.44(V)	mm
Outline Dimension	54.76H) * 83.58(V) * 3.95(D) <TFT+CTP>	mm
Viewing Direction	FULL O'clock	-
TFT Interface	Compatible interface, determined by IM[0-2]	-
TFT Driver IC	ST7796S	-
TFT Driver Condition	VCI=2.8V,IOVCC=1.8V(Typ)	V
Backlight	White LED/6 PCS/Series	-
Touch Panel	Whit CTP	-
CTP Driver IC	GT911	-
CTP Driver Condition	VDD=3.3V(Typ)	V
Operation Temperature	-20 ～ 70	℃
Storage Temperature	-30 ～ 80	℃

Pin Description

Pin NO.	Symbol	Description
1	LEDA	LED Anode
2	LEDK	LED Cathode
1	LED_A	LED Anode
2	LED_K	LED Cathode
3	GND	Ground
4	MIPI_DN	♦ Low voltage differential data signal ♦ Leave the pin to open when not in use.
5	MIPI_DP
6	GND	Ground
7	MIPI_CN	♦ Low voltage differential clock signal ♦ Leave the pin to open when not in use.
8	MIPI_CP
9	GND	Ground
10～12	IM[0～2]	The MCU interface mode select
13	RESET	TFT Reset Pin.Signal is active low.
14	VSD	♦ Vertical synchronizing input signal for RGB interface. ♦ If not used, please fix this pin at GND.
15	HSD	♦ Horizontal synchronizing input signal for RGB interface. ♦ If not used, please fix this pin at GND.
16	PCLK	♦ Dot clock signal for RGB interface. ♦ If not used, please fix this pin at GND.
17	DEN	♦ Data enable signal for RGB interface. ♦ If not used, please fix this pin at GND.
18～35	DB[17～0]	Data	Bus.If	not	used,	please	fix	this	pin	at	GND.
36	SPI_SDO	♦ SPI interface output pin.If not used, let this pin open. ♦ The data is outputted on the falling edge.
37	SPI_SDI	♦ SPI interface input/output pin. ♦ The data is latched on the rising edge. ♦ If not used, please fix this pin at GND.
38	RDX	♦ Read enable in 8080 MCU parallel IF. Low-active. ♦If not used, please fix this pin at GND.
39	WRX SPI_SCL	♦ Write enable in MCU parallel interface ♦ In SPI mode, this pin is used as SCL. ♦ If not used, please fix this pin at GND.

40	DCX	♦ Display data/command selection pin in parallel IF. ♦ If not used, please fix this pin at GND.
41	CSX/SPI_CS	♦ Chip select input pin (“Low” enable). ♦ If not used, please fix this pin at GND.
42	TE	♦ Tearing effect signal is used to synchronize MCU to frame memory writing. ♦ If not used, please let this pin open.
43	VCI	Digital Power
44	GND	Ground
45	NC/CTP_VDD	♦ Power supply input for CTP. ♦ If not used, please let this	pin	open.
46	RTP-XR CTP-SCL	♦ CTP Serial clock signal. ♦ RTP XR control signal ♦ If not used, please let this pin open.
47	RTP-YD CTP-SDA	♦ CTP Serial data input signal. ♦ RTP YD control signal ♦ If not used, please let this pin open.
48	RTP-XL CTP-INT	♦ CTP_External interrupt to the host. ♦ RTP XL control signal ♦ If not used, please let this pin open.
49	RTP-YU CTP-RES	♦ CTP Reset Pin. ♦ RTP YU control signal ♦ If not used, please let this	pin	open.
50	GND	Ground
