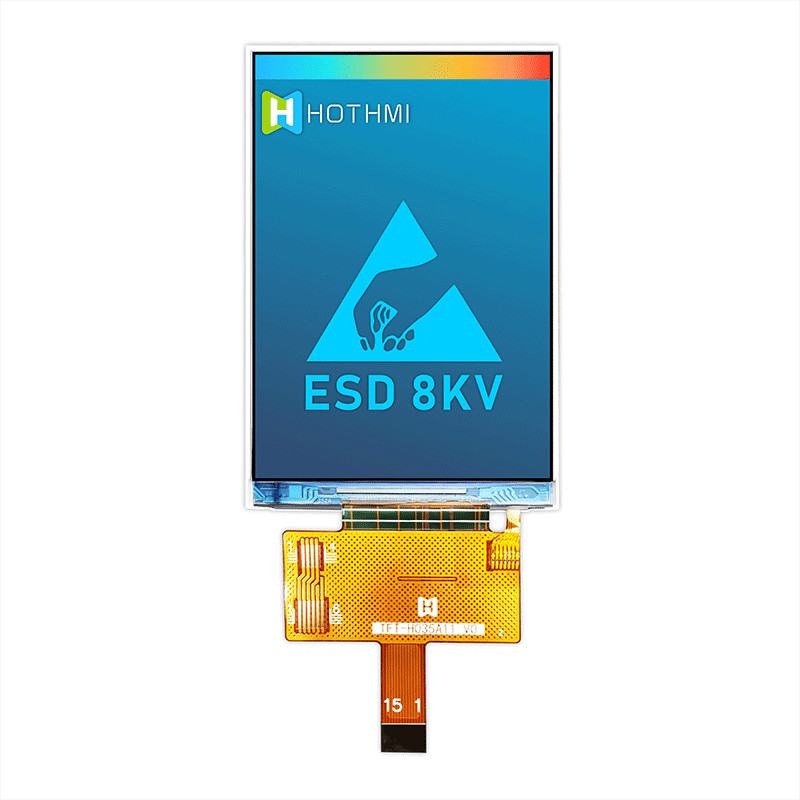

3.5 Inch SPI 320x480 Dots TFT Module ST7796 IC/TFT-H035 A11HVTST5N15

Product parameters

Product Type - TFT Vertical Screen
Display Content - 320x480
Dimensions (mm) - 54.66 x 83.0 x 3.80
Viewshed window size - 3.5 inch
Display Size - 3.5 inches
Effective Dimensions mm - 48.96 x 73.44
Product Application - Outdoor Instrumentation

General Feature

Item	Standard Value			Unit
Display Size	3.5			Inch
Number of Pixels	320(H)3(RGB) 480(V)			dots
Active Area	48.96(H)* 73.44(V)			mm
Outline Dimension	54.50(H) * 83.00(V) * 2.30(D)(V0-0)			mm
Viewing Direction	12 O'Clock (U60/D60/L70/R70)			-
Interface	SPI 3-Line or 4-Line Serial interface			-
Driver IC	ST7796			-
Driver Condition	IOVCC=1.8V,VCI=2.8V or 3.3V(Typ)			V
Backlight	White LED/6 PCS/1 PCS serial 6 ways parallel			-
Touch Panel	Without TP √	With RTP	With CTP	-
TFT Operation AT	-20 ～ +70			℃
TFT Storage AT	-30 ～ +80			℃

TFT Pin Description

Pin NO.	Symbol	Description
1	LEDK	LED cathode
2	LEDA	LED anode
3	GND	Power supply ground
4	SPI	3-wire and 4-wire SPI interface selection
5	RESX	Reset signal. Signal is active low
6	SPI-SDA	- Serial interface data input/output pins. - The data is latched on the rising edge of the SCL signal.
7	SPI-SCL	Serial Interface Clock
8	SPI-D/CX	Serial interface data/command selection pin
9	SPI-CSX	Chip selection pin.Low enable.
10	VCI	Power supply
11	CTP-VDD	CTP Power supply
12	CTP-SCL	CTP I2C clock signal
13	CTP-SDA	CTP I2C data signals
14	CTP-INT	CTP interrupt signal
15	CTP-RES	CTP Reset pin

DESCRIPTION

3.5 inch Thin Film Transistor (TFT-LCD)
HOTLCD Display offers a series of medium size O-Film TFT (Thin Film Transistor) displays featuring with wider viewing angle Technology. Most industrial application of TFT-LCD glasses that are available in the market are TN-LCD type. However, TN technology suffers from phenomenon called gray scale inversion. This means the display have one viewing side in which color of the image change suddenly after exceeding specified view angle. Therefore, the normal TFT models we offer which the viewing angle are limited. HOTLCD offers an O-Film TFT solution to enhance TN glass viewing angle and can overcome gray scale inversion.
